SKU: JY-UQD10N4G-GT
Ship From: Chinese Warehouse
CPU: Qualcomm Snapdragon MSM8953 Octa Core Cortex-A53
Ram: LPDDR4 4GB Rom:EMMC 64GB

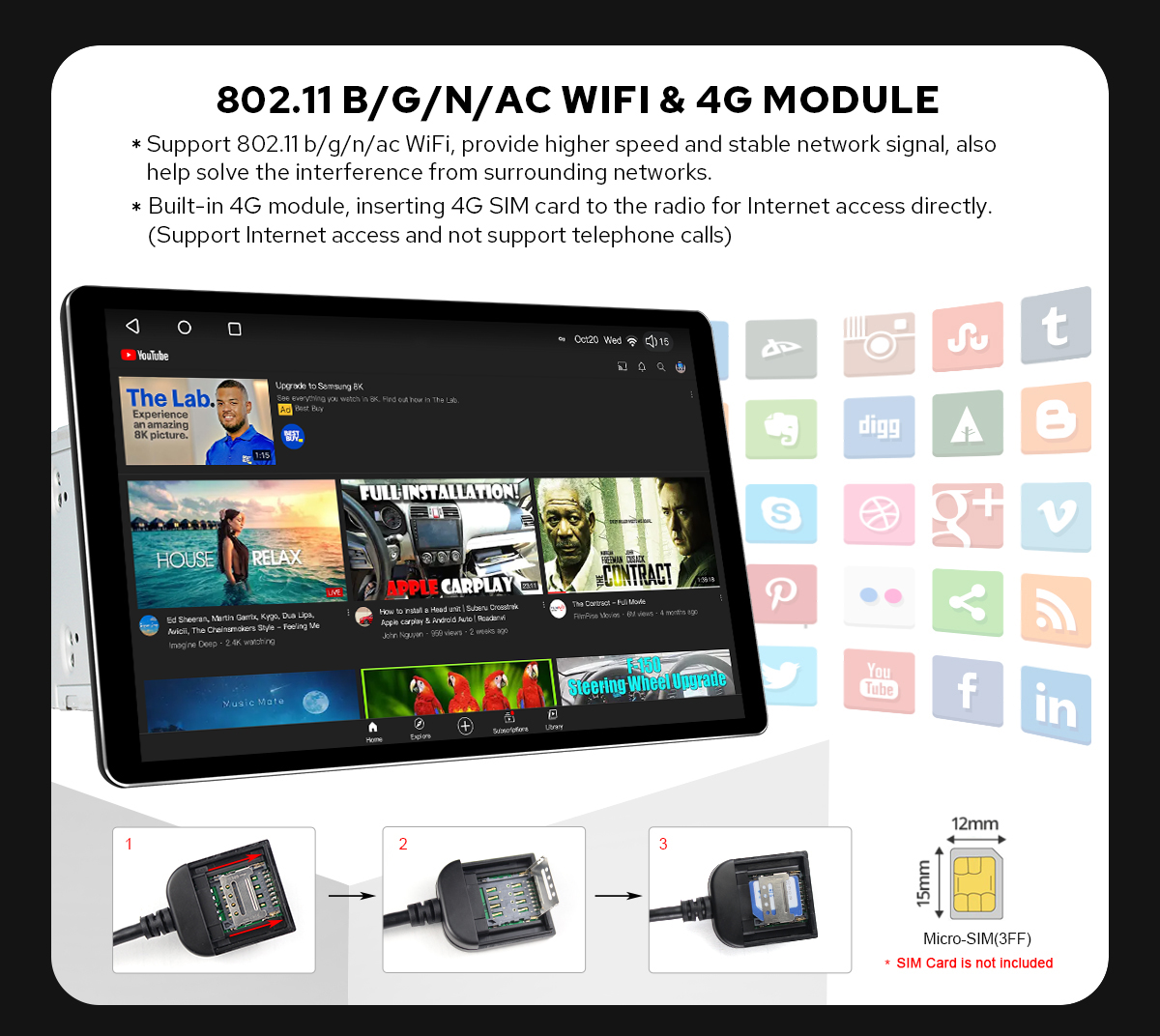

Support Bluetooth, WiFi, DVR, OBD2, Back-Up Camera
If you are not sure whether the unit can fit your car, please send your car model, year and dashboard picture to info@joyingauto.com or support@joyingauto.com,then we will help you confirm.
Supported Micro SIM cards type:
|
GSM | GSM850 EGSM900 PCS1900 |
WCDMA | BAND2 BAND4 BAND5 BAND8 | |
SIM Cards Type | ||
TDD-LTE | BAND38 BAND41 | |
FDD-LTE | BAND2 BAND4 BAND5 BAND7 BAND8 BAND12 BAND17 |
Note:
1. Joying head units can't support like below: iPod, original car GPS antenna, original car Bluetooth, original car USB, and original car Microphone.
2. Please don't upgrade your unit with other firmware that isn’t provided by Joying. Otherwise, you won’t update your unit anymore also will lose our 2-year warranty.
Shipping:
1. We provide free shipping to most countries, some remote countries need to pay a $30 remote shipping fee.
2. Your order will ship out 1-3 days later after the order is done. Buy from China, usually, we will ship by DHL, EMS or Aramex. Buy from oversea warehouse, the shipping time is 2-5 days, fast shipping, and zero custom taxes.
3. We will send the tracking number to your email after order shipped out, please make sure your email address is correct.
Warranty: We provide 2 years warranty, click here to get more return&warranty details.
Operating System | Android 10.0 |
---|---|
CPU Processor | Qualcomm Snapdragon 625 Processor MSM8953 Octa Core Cortex-A53 |
RAM | 4GB |
ROM | 64GB |
Resolution | 1280*800 |

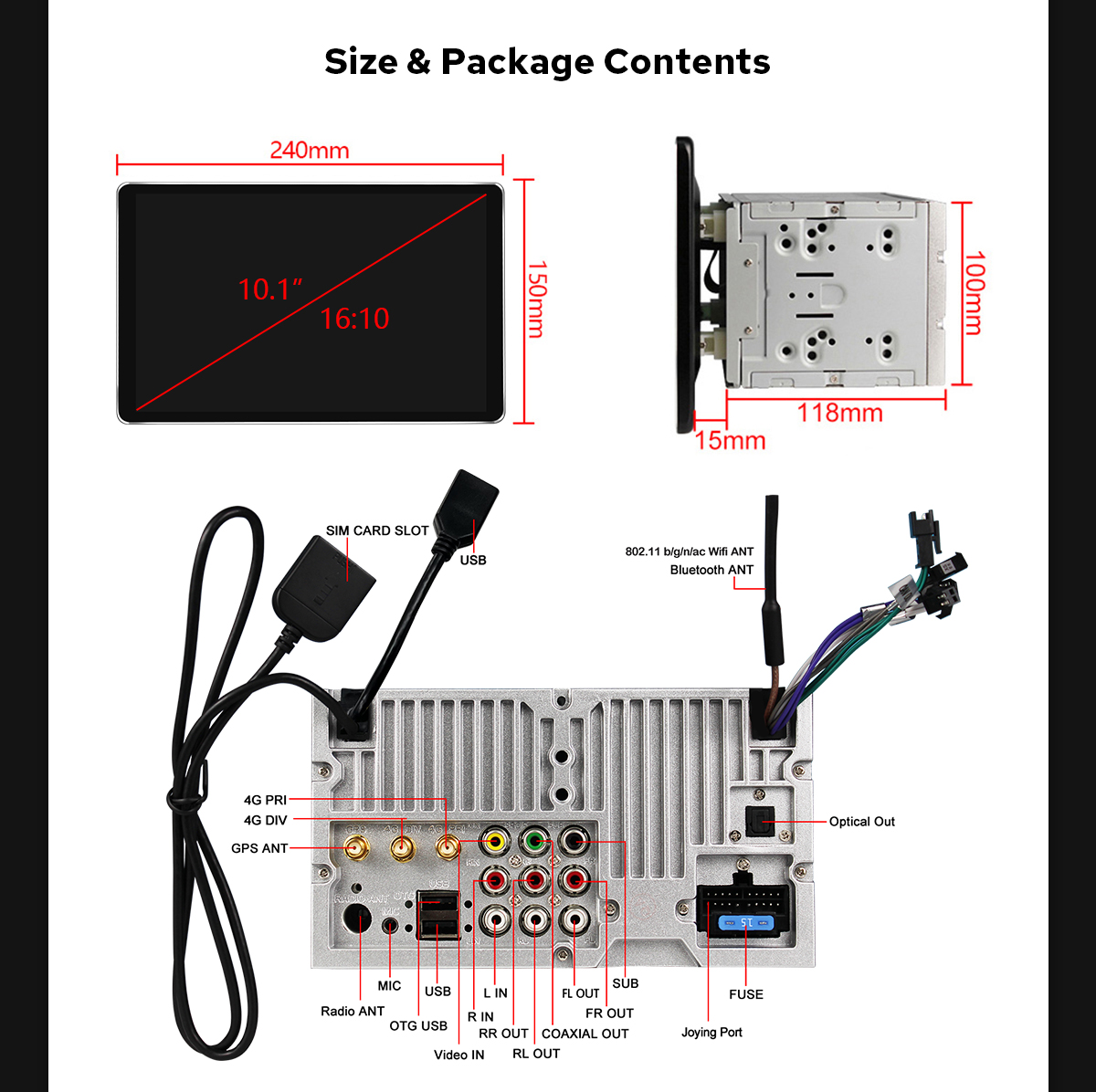

Screen Size | 10.1" |
Panel Size | 10.1" |

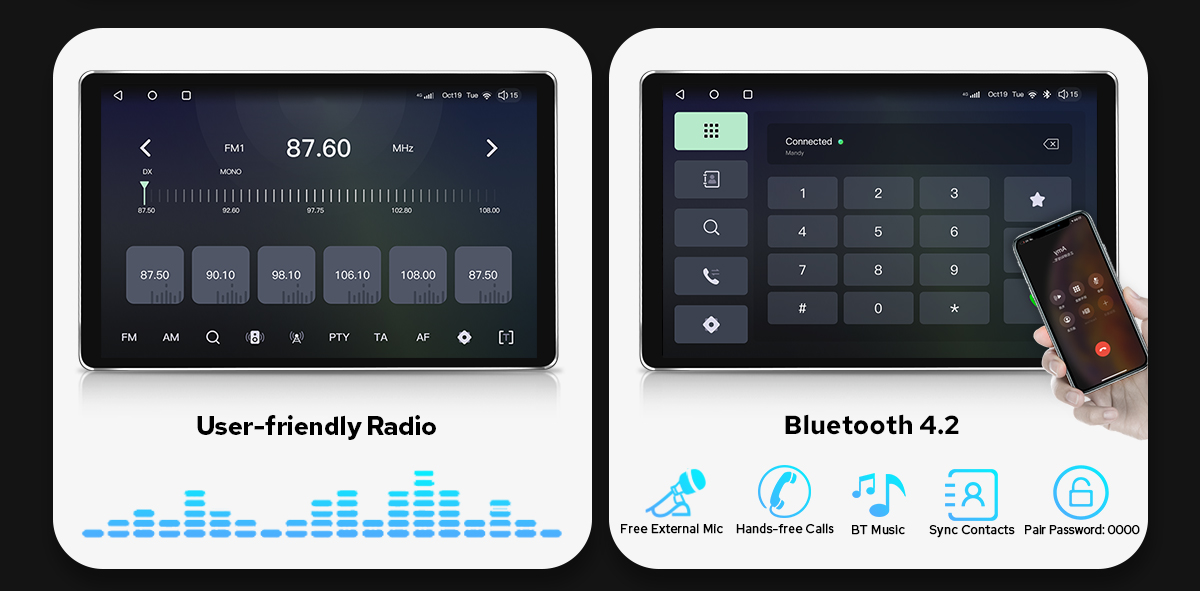

Bluetooth | Bluetooth 4.2, support hands-free phone call and Bluetooth music |
Microphone | Includes external Microphone |
Working Voltage | 10V-14V |
Working Temperature | -40℃-80℃ |
Radio Chip | SI47921 |
Amplifier IC | TDA7851 |
Audio Power Output | 4X50W |
USB/SD slot maximum compatibility | Supports USB flash drive and Micro SD card with up to 64GB of storage |
HDD | Support external hard drive with up to 500GB storage |
APP | Support most Android apps |
Button Color | No Button |
Boot up logo | Support to customize boot up logo |
OSD Language | Support 50+ kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Hebrew/Polish, etc. |
Touch Screen Type | Capacitive touch screen |
Boot up Time | 2s |
Brightness Adjustment | Support |
AM/FM | Support |
Subwoofer Output | Support |
Video out | Not support |
Audio out | Support |
Video in | Support |
GPS | Build in Google map |
SWC | Support factory steering wheel control, some vehicle may need special canbus harness |
Reverse Camera | Can not support factory reverse camera, support aftermarket reverse camera type PAL, NTSC |
DVR | Support (Optional) |
OBD2 | Support (Optional) |
DAB+ | Support (Optional) |

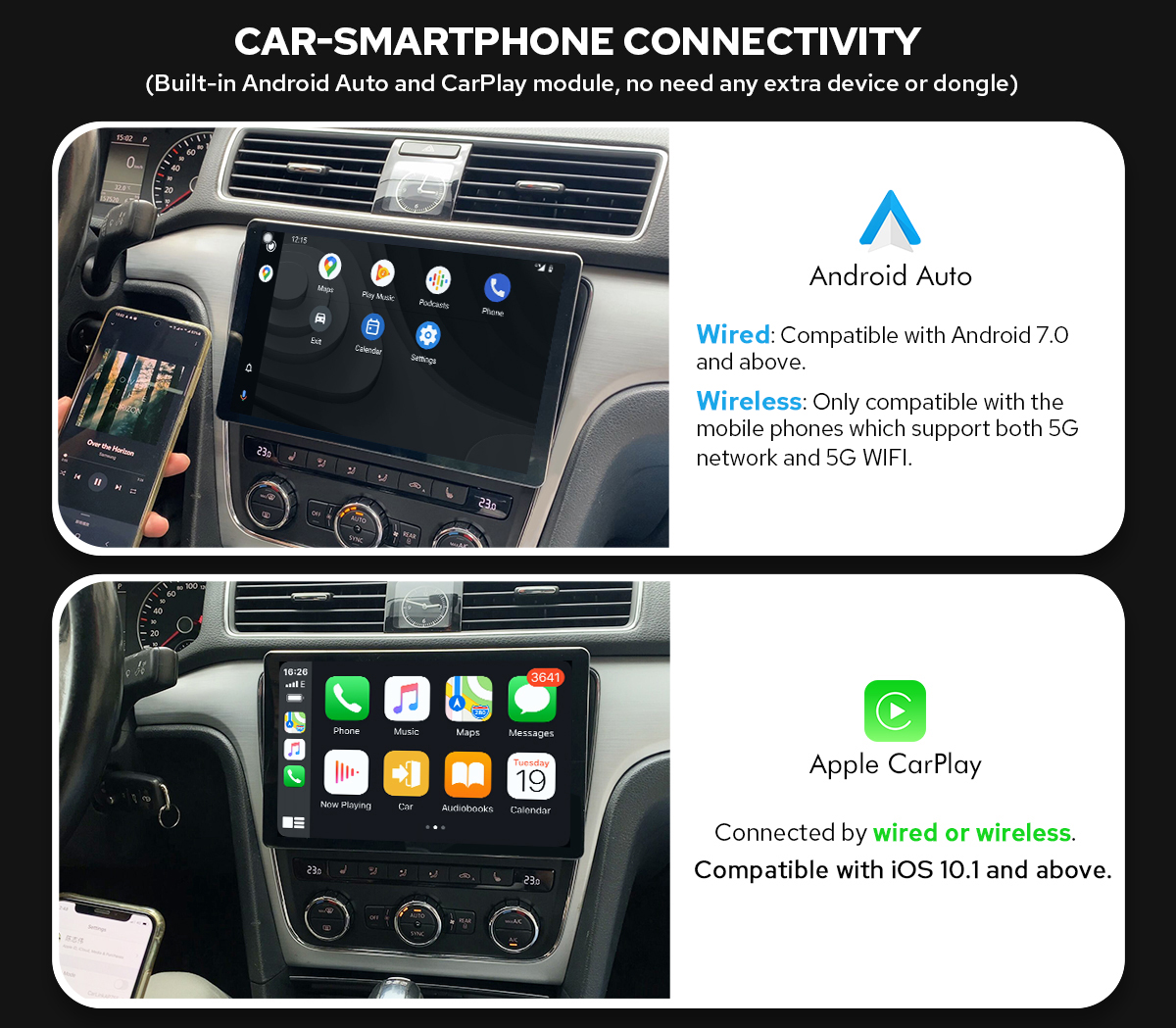

iPhone Zlink | Support wired/wireless CarPlay |
Android auto | Support wired/wiress Android Auto |
