1. Joying Android 12.0 Qualcomm Snapdragon System Update

    新建网页 1

    Joying Android 12.0 Qualcomm Snapdragon System Update

    Note: this update is only workable for the Android 12.0 QCM6125 Qualcomm Snapdragon System car radio. Please contact us if you are not clear your head unit system.
    otherwise the head unit will be dead after update.


    Following is the update (2024-1-06) for Android 12.0 radio

    Here is the firmware for 1280*800/1920*720 radio

    Updated file please click Here

    Applicable Radio model: UZS07N8 UZS06N8 UZS80N8 UZS08N8 UZS10N8  UZD80N8 UZD10N8 TZ164N4 TZ186N4 TZ213N4 TZ152N4 TZ155N4 TZ165N4 TZ207N4 TZ154N4

    TZ166N4 TZ170N4 TZ193N4 TZ214N4 TZ159N4 TZ163N4 TZ217N4 TZ215N4 TZ210N4 TZ158N4 TZ175N4 TZ167N4 TZ168N4 TZ188N4 TZ187N4 TZ216N4 TZ172N4 TZ211N4

    TZ176N4 TZ181N4 TZ182N4 TZ185N4 TZ204N4 TZ205N4 TZ206N4 TZ190N4 TZ191N4 TZ197N4 TZ212N4 TZ208N4 JY-TZ101N4 HZ173N4 HZ122N4 HZ146N4 HZ153N4 HZ167N4

    HZ174N4 HZ140N4 HZ147N4 HZ172N4 HZ144N4 HZ141N4 HZ151N4 HZ142N4 HZ152N4 HZ169N4 HZ145N4 HZ168N4N HZ148N4 HZ101N4 NZ009N4 NZ101N4 NZ104N4 NZ006N4

    NZ007N4 SZ001N4 SZ004N4 SZ005N4 SZ003N4 SZ006N4 SZ007N4 SZ101N4 SZ102N4 SZ103N4 VZ151N4 VZ153N4 VZ161N4 VZ154N4 VZ155N4 VZ162N4 VZ158N4 VZ159N4

    SKZ121N4 VZ101N8 VZS08N8 JZ124N4 JZ125N4 JZ126N4 JZ127N4 JZ101N8 CZ101N8 FZ101N8 FZS08N8 MZ002N4 MZ003N4 MZ004N4 MZ006N4 MZ005N4 MZ007N4 SUZ12N4

    SUZ15N4 SUZ13N4 SUZ17N4 SUZ14N4 MSZ122N4 MSZ101N4 BZ139N4 BZ146N4 BZ124N4 MZM02N4 MZM05N4 MZM03N4 MZM04N4 BZ101N8-MR BZ102N8-MR BZ103N8 AZ101N4

    HZS03N8 HZD03N8 TZD03N8



    Here is the firmware for 1920*1080 / 1920*1200 / 2000*1200 radio

    Updated file please click Here

    Applicable Radio model: UZS11N8 UZD11N8 UZS12N8 UZD12N8 UZS13N8 UZD13N8 UZS14N4 UZD14N4 UZS15N8 UZD15N8 TZ116N8 TZ117N8 TZ118N8 TZ115N8 TZ119N8 TZ120N8 HZ117N8 HZ114N8 SZ116N8

    SZ118N8 SZ115N8 VZ116N8 JZ116N8 JZ133N8 JZ151N8 MZM116N8 AZ116N8



    Following are the tips on how to do the system update:

    Firstly please download and unzip the updated firmware from your windows computer. (Just need unzip one time)

    Then copy the unzipped files directly to the root directory of your USB disk which need to be formatted as FAT32. Below are the unzipping files example:

    Secondly insert the USB disk which smaller than 32GB to the head unit and will update automatically. it takes about 5-6 minutes.

    During the update process, please do not power off or reboot the stereo.

    When these words appear" please remove update device device will reboot", please remove the USB disk.

    After update finished and enter into the home screen, please do not operate the head unit and wait for about 2 minutes.

    Because two apks need to be installed on the background automatically.

    After the apps installation finished, you can operate the stereo or power off it.

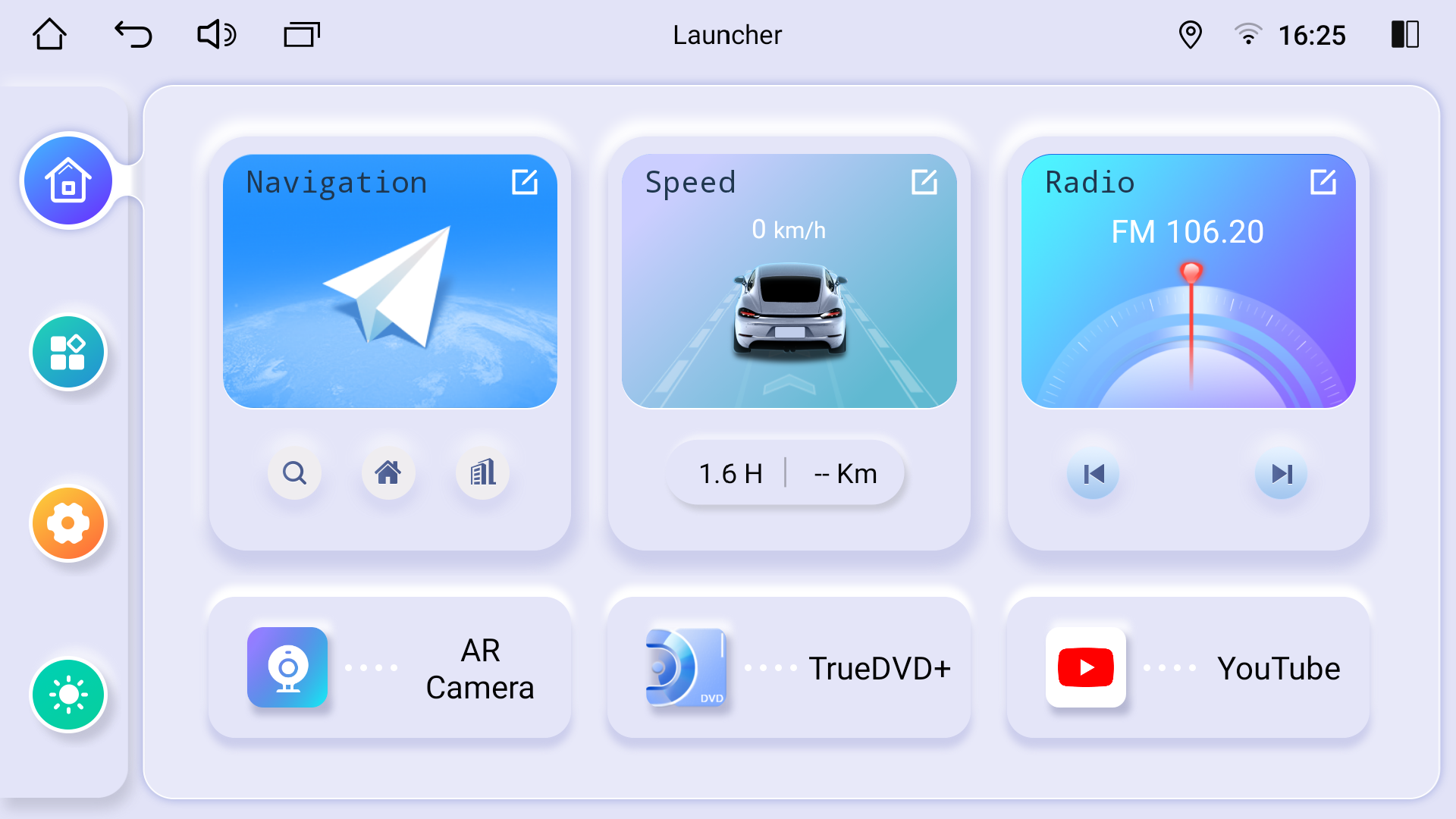

    Finally,  you can choose your interested launcher on the setting. just as below:



    Have any problem during the system update, please contact us support@joyingauto.com or info@joyingauto.com

    Read more
  2. Joying UIS7862 System Car Stereo Latest Update

    Joying UIS7862 System Car Stereo Latest Update



    Note: this update is only workable for the UIS7862 System car radio. Please contact us if you are not clear your head unit system.
    otherwise the head unit will be damaged.


    Following is the updated file (2023-8-31) for Android 10.0 Car Stereo.

    PS: Optimizing the head unit system by updating the system.

    Notice: After system updating, you need to reboot the head unit.

    Pls Attention:

    Updated to this Version(2023-5-15), you cannot back to the previous version. The previous version firmware update is disabled.

    1) Here is the firmware for resolution 800*480 models

    Updated file please click Here

    Applicable Radio Models: UQS04N4G, UQS04N4G-B,UQ126N4G



    2) Here is the firmware for resolution 1024*600 ,1280*720 models without auto-rotated screen/old UI

    Updated file please click Here

    Applicable Radio Models:
    Universal 1Din: UQS03N4G, UQS03N4G-B, UQS01N4G-H, UQS15N4G, UQS15N6G
    Universal 2Din: UQ135N4G, UQ128N4G, UQ138N4G-H, UQD15N4G, UQD15N6G
    For special models: VQ130N4GN, VQ131N4GN, TQ125N4G, TQ138N4G, TQ139N4G, JQ002N4G, HQ135N4G, NQ135N4G
    Some plug-and-play head unit models with 1024*600, and 1280*720 models, Honda, Jeep, VW, Nissan, Subaru, BMW, Benz, Peugeot and so on. if you are not sure, you can contact us first.



    3) Here is the firmware for resolution 1024*600 ,1280*720 models without auto-rotated screen/New UI

    Updated file please click Here

    Applicable Radio Models:  UQS03N4G-B-DA, UQS15N4G-DA, UQS15N6G-DA, UQ135N4G-DA, UQD15N4G-DA, UQD15N6G-DA



    4) Here is the firmware for 9" or 10 Inch 1280*720 model with MIPI screen/old UI (As below example)

    Updated file please click Here



    5) Here is the firmware for 9 or 10 Inch 1280*720 model with MIPI screen/New UI (As below example)

    Updated file please click Here

    6) Here is the firmware for 9 inch 1280*720 model without MIPI screen (As below example)

    Updated file please click Here

    7) Here is the firmware for 10.1" 1920*1200:

    Updated files please click Here

    Applicable Radio Models:  UQS10N4G-H, UQS10N6G-H, UQD10N4G-H, UQD10N6G-H



    8) Here is the firmware for 8.8/10.25 inch1280*480 with old UI:

    Updated files please click Here

    Applicable Radio Models: HQS01N4G-1, HQS02N4G-1



    9) Here is the firmware for 8.8/10.25 inch1280*480 with new UI:

    Updated files please click Here

    Applicable Radio Models: HQS01N4G-2, HQS02N4G-2, TQ161N4G



    10) Here is the firmware for 8" or 9" or 10.1" with 1280*800 for old UI:

    Updated file please click Here

    Applicable Radio Models: UQS80N4G, UQS80N6G, UQS10N4G, UQS10N6G, UQD80N4G, UQD80N6G, UQD80N4G, UQD80N6G, TQD80N4G



    11) Here is the firmware for 8" or 9" or 10.1" with 1280*800 for new UI:

    Updated file please click Here

    Applicable Radio Models: UQS80N4G-DA, UQS80N6G-DA, UQS10N4G-DA, UQS10N6G-DA, UQS07N4G-B, UQS07N8G-B, UQS08N4G-B, UQS08N8G-B, UQD80N4G-DA, UQD80N6G-DA, UQD10N4G-DA, UQD80N6G-DA, NQD10N4G-DA VQD10N4G-DA



    12) Here is the firmware for 10.1 inch 1280*720 with auto-rotated screen:

    Updated files please click Here

    Applicable Car Models: UQD10N4G-R

    13) Here is the firmware for 10.1 inch 1280*800 with auto-rotated screen:

    Updated files please click Here

    Applicable Car Models: UQD10N4GN-R



    14) Here is the firmware for 11.6 inch 1920*1080 resolution:

    Updated files please click Here

    Applicable Car Models: UQS11N4G, UQS11N6G, UQS11N8G-H, UQD11N4G, UQD11N6G, UQD11N8G-H, VQ116N8G-H



    15) Here is the firmware for 13.3 inch 1920*1080 with auto-rotated screen::

    Updated files please click Here

    Applicable Car Models: UQD13N6G-R



    Have any problems during update , please contact us support@joyingauto.com. we will try best to help you .

    Read more
  3. Joying Android 8.1 Intel Airmont SC9853i 2GB+32GB/4GB+32GB Car Stereo Latest Update

    Joying Android 8.1 Intel Airmont SC9853i 2GB+32GB/4GB+32GB/4GB+64GB Car Stereo Latest Update

    Note: this update is only workable for Android 8.1 intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB. Please contact us if you are not clear your head unit system.
    otherwise the head unit will be damaged.


    Following is the updated file (2020-04-07) for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

    Improved feature:

    Solve the Google voice calling problem.

    Here is the firmware for resolution 1024*600 ,1280*720,800*480 models,

    OS file please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3,J-UOS05N4GS,JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

    Some plug and play head unit model with 1024*600 ,1280*720,800*480 models, Honda, Jeep,vw,Nissan,Subaru,BMW,Benz,Peugeot and so on. if you are not sure, you can contact us firstly.


    Following is the updated file (2019-11-28)  for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

    Improved feature:

    1) Improve the head unit Canbus protocol

    2) The Bluetooth version will be up to 5.1



    Before the update, you need to make clearly your head unit is G23 or G32 version. please check following screenshot for reference:

    1)If your head unit is G32 version and your MCU version is lower than 2019-9-7, you need to update the MCU file and OS file one by one.

      If your head unit is G32 version and your MCU version is higher than 2019-9-7, you only need to update the OS file.

    2)If your head unit is G23 version, no matter which MCU version date you have, you do not need to update the MCU file. only update the OS file.



    Please noted: if you are still not clear, please contact us support@joyingauto.com or info@joyingauto.com we will help.



    Here is the firmware for resolution 1024*600 ,1280*720 models,

    OS file please click Here

    MCU file please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3,J-UOS05N4GS



    Here is the firmware for resolution 800*480 models

    OS file: please click Here

    MCU file: please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS



    Here is the firmware for resolution 1280*480 with old UI models

    OS file: please click Here

    MCU file: please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1



    Here is the firmware for resolution 1280*480 with new UI models

    OS file: please click Here

    MCU file: please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2,  JY-HOS01N4GS-2, JY-HOS02N4GS-2



    Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768

    OS file: please click Here

    MCU file: please click Here

    Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS



    Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768

    OS file: please click Here

    MCU file: please lick Here

    Applicable Car Models: JY-VO101N4GS-R




    Following is the updated file (2019-9-17) with the new MCU version, solved Button light issue) for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

    Below are the improvements after updating the system:

    1. Add the Google assistant calling

    2. Improve the issue of no audio reply from "ok Google"

    3. If your phone is SC9853i with 2GB/32GB, you can use the "Mirror-link" function by wired/wireless wifi iphone or android phone.

    4.After update, your pre-installed apps would not be deleted.



    About the update, you need to know the followings:

    1. If there is an error shown on connecting the z-link after your update, please reboot the head unit will be fine.

    2. If your MCU is G32 as below, your head unit is old MCU version. you can update this updated file.

        If your MCU is G23, your head unit is the new MCU version. you do not need to update this updated file.

    If you are worried about the update, you can email us before your update.

    Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3,J-UOS05N4GS

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS



    Here is the firmware for resolution 1280*480 with old UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1



    Here is the firmware for resolution 1280*480 with new UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2,  JY-HOS01N4GS-2, JY-HOS02N4GS-2



    Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768, please click Here

    Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS

    Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768, please click Here

    Applicable Car Models: JY-VO101N4GS-R




    Following is the updated file (2019-8-14 with the new MCU version, solved Button light issue) for  Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

    Note: If your Intel SC 9853i head unit is purchased after 10th Sept 2019, pls do not update with below firmware, contact with JOYING support by email first.

    Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS



    Here is the firmware for resolution 1280*480 with old UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1



    Here is the firmware for resolution 1280*480 with new UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2,  JY-HOS01N4GS-2, JY-HOS02N4GS-2



    Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768, please click Here

    Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS

    Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768, please click Here

    Applicable Car Models: JY-VO101N4GS-R




    Following is the updated file (2019-6-21) for  Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

    Below problems have been solved:

    1)When you are using the Bluetooth calling, you can also use the navigation.

    2)Last and next song /pause the volume on Z-link function can be controlled by your steering wheel control.

    3)TPMS app can be used normally.

    Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

    Here is the firmware for resolution 1280*480 with old UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

    Here is the firmware for resolution 1280*480 with new UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2,  JY-HOS01N4GS-2, JY-HOS02N4GS-2


    Following is the updated file (2019-5-15) for  Android 8.1 intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

    Here is the firmware for resolution 1024*600 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

    Here is the firmware for resolution 1280*480 with old UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

    Here is the firmware for resolution 1280*480 with new UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2,  JY-HOS01N4GS-2, JY-HOS02N4GS-2


    Following is the updated file (2019-4-3) for  Android 8.1 intel SC9853i car radio with 2GB+16GB/4GB+32GB

    Here is the firmware for resolution 1024*600 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models:  JY-UOS04N2,JY-UO126N4,JY-UOS04N4G


    Following is the updated file (2019-3-29) for  Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB

    Here is the firmware for resolution 1024*600 models , please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2,JY-JO002N4

    Here is the firmware for resolution 800*480 models , please click Here

    Applicable Car Models:  JY-UOS04N2

    Here is the firmware for resolution 1280*480 with old UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1

    Here is the firmware for resolution 1280*480 with new UI models, please click Here

    Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2


    Following is the updated file (2019-3-5) for  Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB

    Here is the firmware for resolution 1024*600 models, please click Here

    Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
    JY-UO135N2, JY-UOS03N2, JY-UOS04N2



    Have any problems during update , please contact us info@joyingauto.com or support@joyingauto.com . we will try best to help you .


    Read more
  4. JOYING Octa Core Processor Android 8.0 Car Radio Latest Update with 2GB /4GBRAM + 16GB ROM /32GB

    JOYING Octa Core Processor Android 8.0 Car Radio Latest Update with 2GB /4GBRAM + 16GB ROM /32GB




    Note: this update is only workable for Android car radio with octa core CPU with 2GB RAM+16GB ROM . Please contact us if you are not clear your head unit system .
     otherwise the head unit will be damaged .


    Following is the updated files for Octa Core Processor Android 8.0 Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM /64GB
    please noted : it can solve the android auto function supported by android 8.0 phone .
    Android 8.0 update to Android 8.1 or Android 8.1 update to Android 8.1

    Before update , you need to clarify your head unit with or without DSP (motherboard comes with nut chips )
    following will be shown on pictures and help you how to distinguish. (if you still not clear , please contact us
    support@joyingauto.com or info@joyingauto.com )

    Following updated files for resolution 1024*600 models ,
    MCU file please click Here
    OS file please click Here

    Available unit :
    JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,JY-UOS04N2PX5, JY-UOS01N4PX5, JY-UOS03N4PX5,JY-UOS02N4PX5
    JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S
    JY-KO002N4PX5S,JY-KO003N4PX5S,JY-HO122N4PX5S,JY-FO127N4PX5S,JY-FO128N4PX5S,JY-TO151N4PX5S,JY-TO152N4PX5S,JY-TO153N4PX5S,
    JY-TO154N4PX5S,JY-TO155N4PX5S,JY-TO156N4PX5S,JY-TO157N4PX5S,JY-TO158N4PX5S,JY-TO159N4PX5S, JY-HO140N4PX5S,JY-HO141N4PX5S,JY-HO142N4PX5S
    JY-HO143N4PX5S,JY-VO134N4PX5S,JY-HO001N4PX5S,JY-HO002N4PX5S,JY-HO003N4PX5S,JY-NO001N4PX5S,JY-PO148N4PX5S,JY-PO138N4PX5S


    Following updated files for resolution 1024*600 models with DSP (motherboard comes with nut chips )
    MCU file please click Here
    OS file please click Here

    Available unit :
    JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,, JY-UOS03N4PX5,JY-UOS02N4PX5
    JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S
    JY-KO002N4PX5S,JY-KO003N4PX5S,JY-HO122N4PX5S,JY-FO127N4PX5S,JY-FO128N4PX5S,JY-TO151N4PX5S,JY-TO152N4PX5S,JY-TO153N4PX5S,
    JY-TO154N4PX5S,JY-TO155N4PX5S,JY-TO156N4PX5S,JY-TO157N4PX5S,JY-TO158N4PX5S,JY-TO159N4PX5S, JY-HO140N4PX5S,JY-HO141N4PX5S,JY-HO142N4PX5S
    JY-HO143N4PX5S,JY-VO134N4PX5S,JY-HO001N4PX5S,JY-HO002N4PX5S,JY-HO003N4PX5S,JY-NO001N4PX5S,JY-PO148N4PX5S,JY-PO138N4PX5S





    Following updated files for resolution 800*480 models
    MCU file please click Here
    OS file please click Here

    Available unit : JY-JO001N4PX5S


    Following updated files for resolution 800*480 models with DSP (motherboard comes with nut chips )
    MCU file please click Here
    OS file please click Here

    Available unit : JY-JO001N4PX5S



    Following updated files for 9.7 inch horizontal models
    MCU file please click Here
    OS file please click Here

    Available unit :  JY-VOS06N4PX5S,JY-UO136N4PX5S



    Following updated files for 9.7 inch horizontal models with DSP (motherboard comes with nut chips )
    MCU file please click Here
    OS file please click Here

    Available unit :  JY-VOS06N4PX5S,JY-UO136N4PX5S


    Following updated files for 9.7 inch vertical models
    MCU file please click Here
    OS file please click Here


    Available unit :  JY- VO101N4PX5S , JY-VOS01N4PX5S



    Following updated files for 9.7 inch vertical models with DSP (motherboard comes with nut chips )
    MCU file please click Here
    OS file please click Here


    Available unit :  JY- VO101N4PX5S , JY-VOS01N4PX5S



    please noted following when you update:

    1) please update the MCU files firstly and then update the OS files.
    2) The updated files for the head unit with DSP is different with the unit has ASP.
    if update the wrong files, the head unit will have no sound .
    (you can judge by EQ interface . The previous normal EQ interface is ASP, currently internal DSP with nut chip interface is DSP )

    3)For the universal head unit update you need to use the left USB on the back of the head unit (the head unit need to be opposite directly to you )
    or you can update with sd card.
    if your head unit is special unit, you need to connect the USB/CP port to update.

    4) please kindly prepare 2 USB drivers or 2 sd card (class 10)
    after finish updating the MCU files , the head unit will reboot automatically. after reboot and enter into the home interface please disconnect the
    USB driver .MCU updated time will be a little short.
    and then connect the USB which with OS files , the OS update will need a little more time.
    during the update , please do not disconnect the USB driver. after finishing the update and show the "update successfully "tips then you disconnect
    the USB driver.




    Following is the updated files (2018-7-16 ) for Octa Core Processor Android 8.0 Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM /64GB

    (Please noted : if you are not clear whether you can udpate following files , please contact us  europe@joyingauto.com .  otherwise the head unit will be bad if you udpate the wrong files )


    Android 8.0.0 update to Android 8.1.0


    Available unit :
    Universal unit : JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,JY-UOS04N2PX5, JY-UOS01N4PX5, JY-UOS03N4PX5,JY-UOS02N4PX5
    JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S


    Toyota unit : JY-TO138N4PX5, JY-TO139N4PX5,JY-TO138N4PX5S



    Here is the firmware updated link for 1024*600, please click Here
    Here is the firmware updated link for 800*480, please click Here






    Following is the updated files (2018-4-20 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM
    Android 8.0 update to Android 8.0


    Here is the firmware updated link for 1024*600, please click Here
    Here is the firmware updated link for 800*480, please click Here


    This update has the below features:
    1. Add Z-Link app to run the Android Auto and iPhone Carplay
    2. Optimize the System and apps

    Kindly Warning:


    1). Please download it from your windows computer and unzip it
    2). Copy the unzipped files into an empty USB FAT32
    3). Insert the USB into your car radio left side USB connector (the side without Wifi and GPS cable), then the unit will update automatically (if the head unit cannot detect the firmware to update, you can enter the car radio Settings - System and click the System Update button)
    4). When updating, pls do not operate it and just wait it until the screen remind you to move the USB
    5). After you remove the USB drive, the unit will restart automatically. After it reboot you need calibrate the touch screen.

    After update succeed then you will find the Z-LINK app in the system menu, for the first time to run Z-Link app, you need connect the unit with internet.
    Then when you enter the Z-Link app, it will remind you to fill in the Activation Code. Pls contact us support@joyingauto.com or info@joyingauto.com to get the Activation Code.
    here is the video on how to update the system , please check :

    If your have any abnormal situation during updating (like stuck in the logo, black screen, etc), please do not worry and feel free to contact us support@joyingauto.com or info@joyingauto.com.






    Following is the updated files (2018-4-20 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM
    Android 6.0 update to Android 8.0


    Here is the firmware updated link for 1024*600, please click Here
    Here is the firmware updated link for 800*480, please click Here


    (Note: before upgrade, pls prepare a USB disk and a SD card which with the same firmware )

    1). Pls download it from your windows computer and unzip it
    2). Copy the unzipped files into High Quality empty USB disk FAT32 and empty 32GB C10 SD Card
    3). Insert the USB disk into your car radio left side USB connector(the side without Wifi and GPS cable), then the unit will update automatically
    4). When use the USB updating, the unit enter recovery page to upgrade, then it will show "Doing Actions Failed ! Pls Remove the USB Disk... "
    5). Then Remove the USB disk(pls do not turn off the unit), and insert the SD card to unit GPS Map slot directly, and click the reset button, then the unit will upgrade automatically(Pls attention, The SD card should have the same firmware with the USB disk in)
    6). When updating, pls do not operate it and just wait it until the screen remind you to move the USB
    7). After you remove the USB drive, the unit will restart automatically. After it reboot you need calibrate the touch screen.

    Details on how to update the system , please see below :


    If you have any abnormal situation during updating (like stuck in the logo, black screen, etc), please do not worry and feel free to contact us support@joyingauto.com or info@joyingauto.com






    Following is the updated files (2018-1-26 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM


    Here is MCU update link, please click Here .
    Here is system update link for HD 1024*600 resolution , please click Here .
    Here is system update link for HD 800*480 resolution , please click Here .


    Here is the video on how to update the system :




    Before you update the head unit, please backup all important things:
    1) Copy maps from car stereo internal storage to SD card.
     2) Go to settings-factory settings-enter password 126-canbus setting to check canbus protocol and record it.
    3) Use a good quality SD card or USB to update it (format the SD card or USB as FAT32)

    After you finish the update, you are required to do the below things:
    1) After you update, you need to connect WiFi to activate carplay function. Only left side USB port has carplay function. if you want to use Android auto, please insatll android auto app from google play store, then connect android Phone via USB cable to left side USB port. Connect Bluetooth, and android auto function can work.
    2) If your car stereo is VW special model, front and parking sensor can work well after this update.


    Have any problems during update , please contact us support@joyingauto.com or info@joyingauto.com . we will try best to help you .


    Read more
  5. JOYING 2GB RAM 32GB ROM Octa Core CPU Android 8.0 Car Stereo Latest Update

    新建网页 3

    JOYING 2GB/4GB RAM 32GB ROM Octa Core CPU Android 8.0 Car Stereo Latest Update



    Note: this update is only workable for Android 8.0 car radio with octa core CPU with 2GB/4GB RAM+32GB /64GB ROM . Please contact us if you are not clear your head unit system .

     otherwise the head unit will be damaged .


    Please also noted :

    After firmware update, pls follow below instructions to download the contacts (to avoid deleting your google contacts):

    1. Go to Joying settings
    2. Go to user/account
    3. Click on your account name (email) and then click on "Account sync" just below account name, this will open a new menu.
    4. There you can disable contacts sync option
    5. After connected the "Bluetooth", please go "Contacts" of "Bluetooth" App to download the phone contacts.


    Following is the updated files (2018-11-7 ) for Octa Core Processor Android 8.0 Car Radio with 2GB/4GB+ 32GB ROM

    please noted :

    after finish calling by android auto function but no sound switching on playing music .

    after update below files , it can solve this problem .

    Here is the firmware for resolution 1024*600 models , please click Here
    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2,
    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4 ,JY-JO002P4

    Here is the firmware for resolution 800*480 models, please click Here
    Applicable Car Models: JY-UOS04P4, JY-UOS04P2 , JY-UO126P4

    Here is the firmware for resolution 1024*600 models with DVD , please click Here
    Applicable Car Models: JY-VO130P2,JY-VO130P4 , JY-TO122P2, JY-TO122P4 ,JY-TO121P2, JY-TO121P4 , JY-HO121P2 , JY-HO121P4

    Here is the firmware for resolution 800*480 models with DVD , please click Here
    Applicable Car Models:  JY-TO123P2


    Here is the firmware for resolution 1280*480 models, please click Here
    Applicable Car Models: JY-HOS01P2(8.8 inch), JY-HOS02P2(10.25 inch) ,JY-HOS01P4 (8.8 inch) , JY-HOS02P4 (10.25 inch )

    Here is the firmware for resolution 1024*600 models with internal DSP amplifier , please click Here
    Applicable Car Models: JY-UO139P2D,JY-UO139P4D, JY-UOS05P2D , JY-UOS05P4D



    Following is the updated files (2018-11) for Octa Core Processor Android 8.0 Car Radio with 2GB/4GB+ 32GB ROM

    please noted : Joying head unit can be compatible with android 8 android phone for using android auto function after updating below files .

    Here is the firmware for resolution 1024*600 models , please click Here

    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2,

    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4



    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models: JY-UOS04P4, JY-UOS04P2 , JY-UO126P4



    Here is the firmware for resolution 1024*600 models with DVD , please click Here

    Applicable Car Models: JY-VO130P2,JY-VO130P4 , JY-TO122P2, JY-TO122P4 ,JY-TO121P2, JY-TO121P4 , JY-HO121P2 , JY-HO121P4



    Here is the firmware for resolution 1280*480 models, please click Here

    Applicable Car Models: JY-HOS01P2(8.8 inch), JY-HOS02P2(10.25 inch) ,JY-HOS01P4 (8.8 inch) , JY-HOS02P4 (10.25 inch )



    Here is the firmware for resolution 1024*600 models with internal DSP  amplifier , please click Here

    Applicable Car Models: JY-UO139P2D,JY-UO139P4D, JY-UOS05P2D , JY-UOS05P4D



    Details on how to update the files , please check below video :




    Following is the updated files (2018-10-8 ) for Octa Core Processor Android 8.0 Car Radio with 2GB/4GB+ 32GB ROM

    please noted : it will improve the bluetooth calling problems .

    Here is the firmware for resolution 1024*600 models , please click Here

    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2, JY-HYO135P2,JY-UOS05P2D

    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4, JY-HYO135P4 ,JY-UOS05P4D,Jy-UO139P2D, JY-UO139P4D,

    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models: JY-UOS04P4, JY-UOS04P2 , JY-UO126P4



    Here is the firmware for resolution 1024*600 models with DVD , please click Here

    Applicable Car Models: JY-VO130P2,JY-VO130P4



    Here is the firmware for resolution 1280*480 models, please click Here

    Applicable Car Models: JY-HOS01P2(8.8 inch), JY-HOS02P2(10.25 inch) ,JY-HOS01P4 (8.8 inch) , JY-HOS02P4 (10.25 inch )





    Following is the updated files (2018-7-27 ) for Octa Core Processor Android 8.0 Car Radio with 2GB/4GB RAM + 32GB /64GB ROM

    please noted : it will solve the "wallpaper resolution problems "





    Here is the firmware for resolution 1024*600 models , please click Here

    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2, JY-HYO135P2,JY-UOS05P2D

    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4, JY-HYO135P4 ,JY-UOS05P4D,Jy-UO139P2D, JY-UO139P4D


    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models: JY-UOS04P4, JY-UOS04P2 , JY-UO126P4


    Here is the firmware for resolution 1024*600 models with DVD , please click Here

    Applicable Car Models: JY-VO130P2,JY-VO130P4




    Following is the updated files (2018-7-7 ) for Octa Core Processor Android 8.0 Car Radio with 2GB/4GB RAM + 32GB /64GB ROM

    please noted : if your android auto function can not be used after updating the (2018-6-5 ) firmware but can used before , please update following files .

    then your "ok google " and "android auto " can be workable .



    Here is the firmware for resolution 1024*600 models , please click Here
    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2, JY-HYO135P2,JY-UOS05P2D

    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4, JY-HYO135P4 ,JY-UOS05P4D


    Here is the firmware for resolution 800*480 models, please click Here

    Applicable Car Models: JY-UOS04P4, JY-UOS04P2


    Here is the firmware for resolution 1024*600 models with DVD , please click Here

    Applicable Car Models: JY-VO130P2,JY-VO130P4


    Here is the firmware for resolution 1280*480 models, please click Here

    Applicable Car Models: JY-HOS01P2(8.8 inch), JY-HOS02P2(10.25 inch) ,JY-HOS01P4 (8.8 inch) , JY-HOS02P4 (10.25 inch )






    Following is the updated files (2018-6-5 ) for Octa Core Processor Android Car Radio with 2GB/4GB RAM + 32GB /64GB ROM

    Please noted : following files mainly solve the "ok google " problems .

    Update Guideline:

    please noted : following firmware is only available for Joying FYT Android 8.0 PX5 Octa Core 2GB/4GB+32GB/64GB Radio. Pls attention: This firmware is NOT fit for Android 6.0 octa core radios, Not for 8 inch VW head unit with DVD player(JY-VO130P2,JY-VO130P4), also Not for screen resolution 800*480 models.


    Here is the firmware for 1024*600 resolution models . please click
    Here
    Applicable Car Models: JY-UO135P2, JY-UO128P2, JY-UO138P2, JY-UO134P2, JY-UOS01P2, JY-UOS02P2, JY-UOS03P2, JY-VO131P2, JY-TO138P2, JY-NO135P2, JY-NO138P2, JY-NO134P2, JY-HO135P2, JY-HYO135P2,JY-UOS05P2D

    JY-UO135P4, JY-UO128P4, JY-UO138P4, JY-UO134P4, JY-UOS01P4, JY-UOS02P4, JY-UOS03P4, JY-VO131P4, JY-TO138P4, JY-NO135P4, JY-NO138P4, JY-NO134P4, JY-HO135P4, JY-HYO135P4 ,JY-UOS05P4D




    please noted : following firmware is only available for Joying FYT Android 8.0 PX5 Octa Core 2GB/4GB+32GB/64GB Radio. Pls attention: This firmware is NOT fit for Android 6.0 octa core radios, Not for 8 inch VW head unit with DVD player(JY-VO130P2,JY-VO130P4)

    Here is the firmware for 800*480 resolution models . please click Here

    Applicable Car Models: JY-UOS04P4, JY-UOS04P2




    please noted : following firmware is only available for Joying FYT 8 inch Android 8.0 PX5 Octa Core 2GB/4GB+32GB/64GB VW head unit with DVD player(JY-VO130P2,JY-VO130P4)

    Here is the firmware for 1024*600 resolution models with DVD . please click Here

    Applicable Car Models: JY-VO130P2,JY-VO130P4






    Here is the firmware for 1280*480 resolution models. please click Here
    Applicable Car Models: JY-HOS01P2(8.8 inch), JY-HOS02P2(10.25 inch) ,JY-HOS01P4 (8.8 inch) , JY-HOS02P4 (10.25 inch )






    Have any problems during update , please contact us info@joyingauto.com or support@joyingauto.com . we will try best to help you .



    Read more
Page
