Tips for OEM Backup Camera Connection on Honda Civic

21 September, 2022

|

Categories: Tips

Tips for OEM Backup Camera Connection on Honda Civic

If you ordered a Joying Honda Civic Car radio for your Honda Civic car with the year 2016-2021, and the OEM Backup camera cannot work. Pls check the below info:

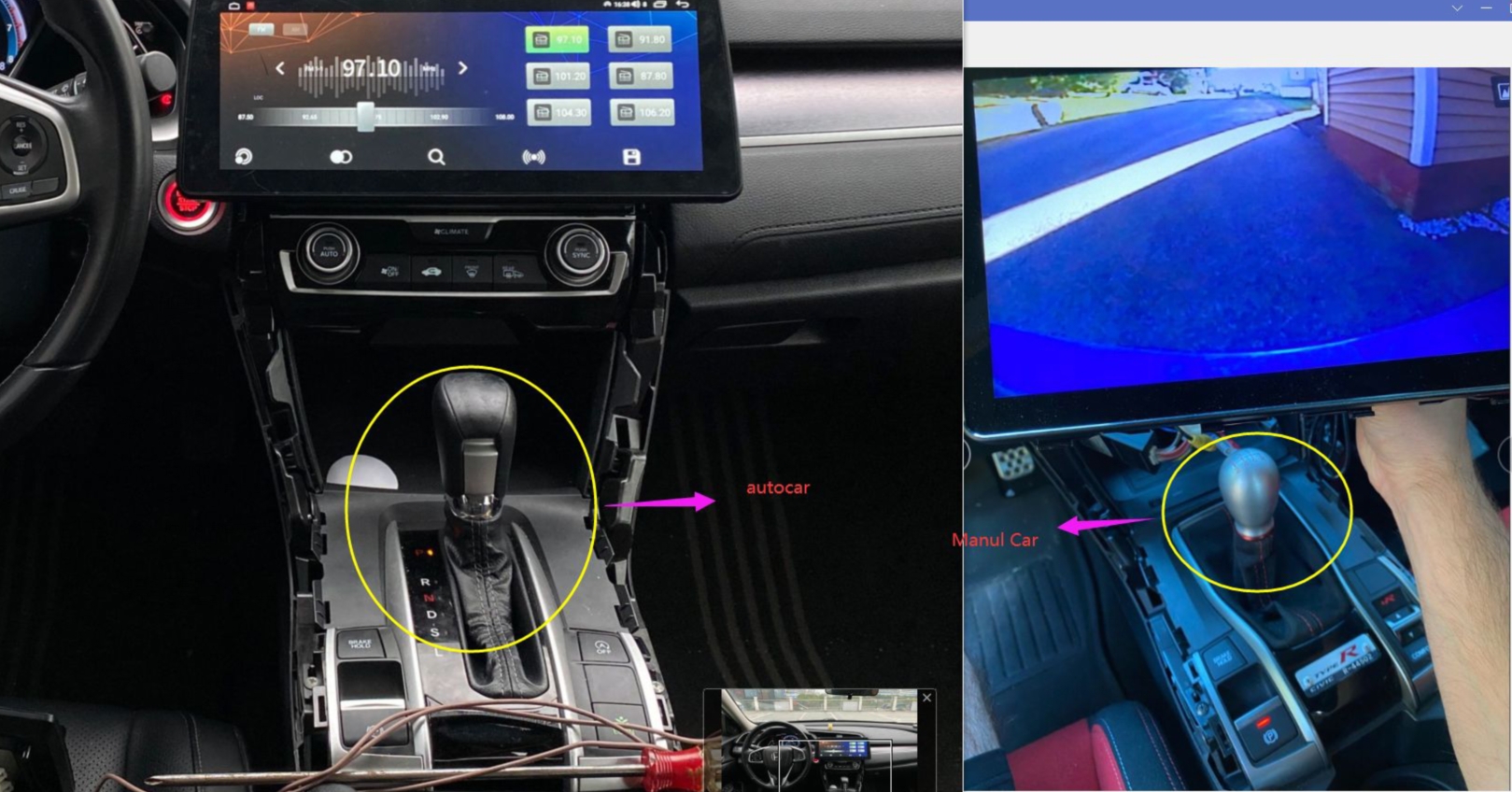

1. First of all, pls check what your car type is? Auto or Manual?

2. If your car is the Auto type, you only need to make the backup camera input RCA cable connected. Pls Check the below picture as reference:

3. If your car is the Manual Type, pls check the below connections:

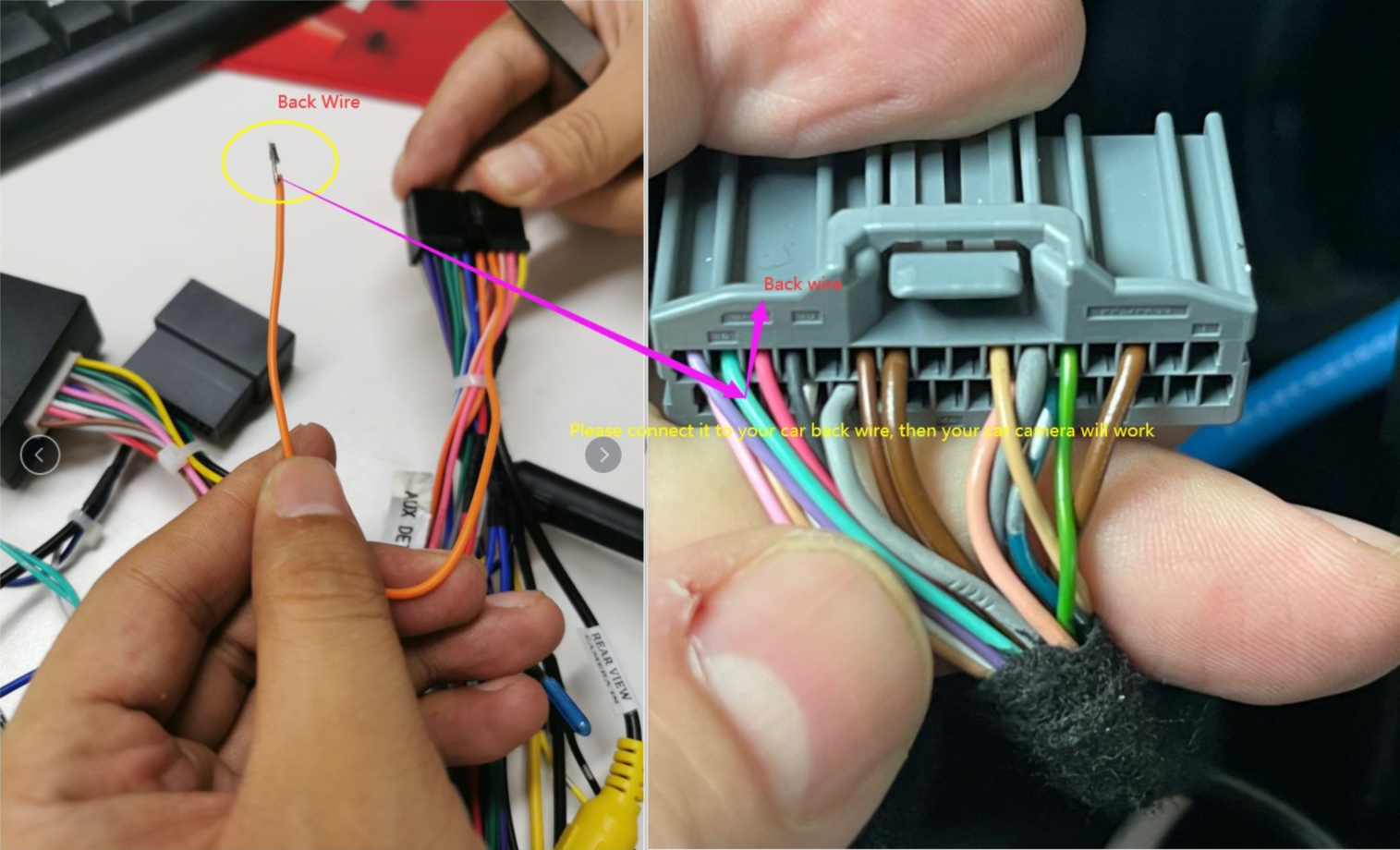

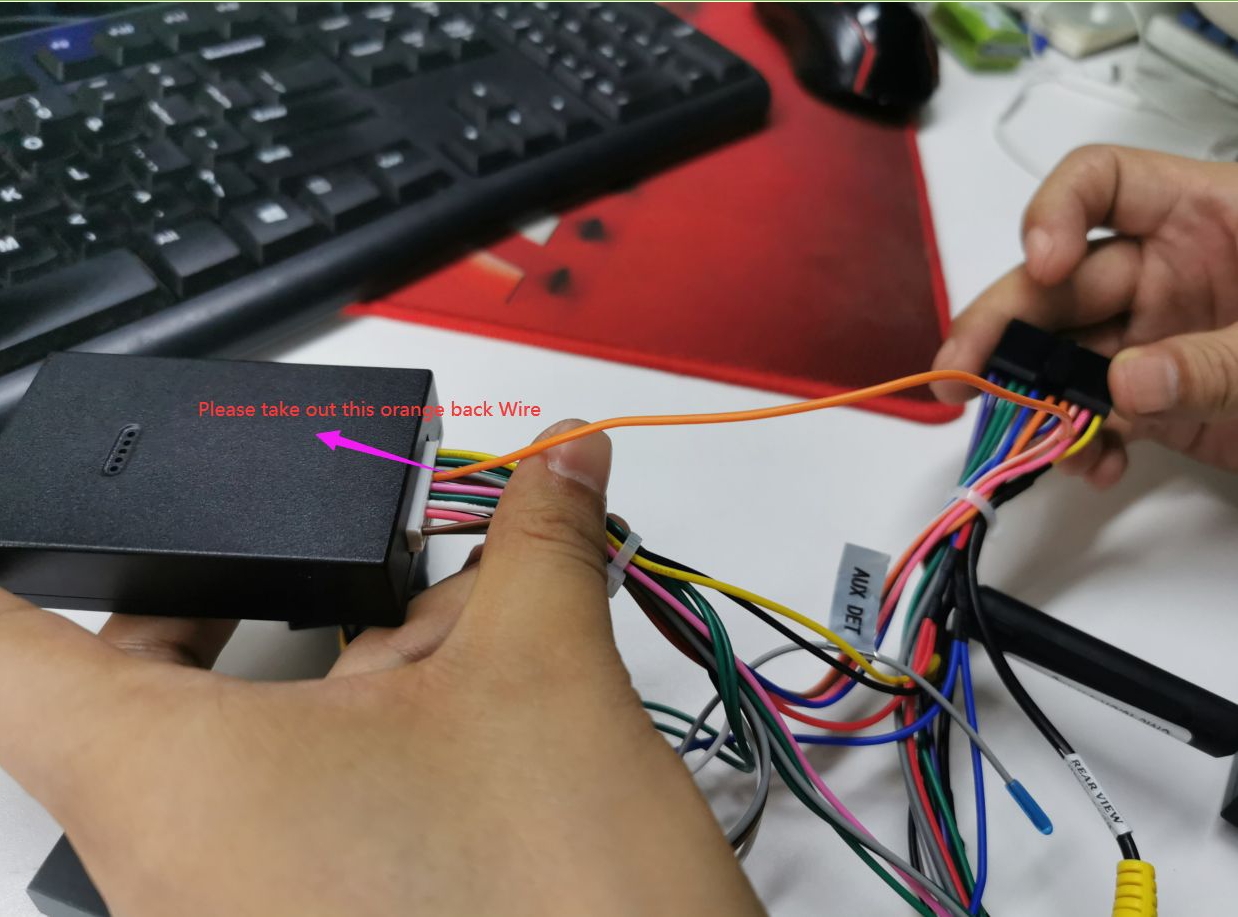

a. Pls find the Full Orange BACK cable from the Canbus box and take it out:

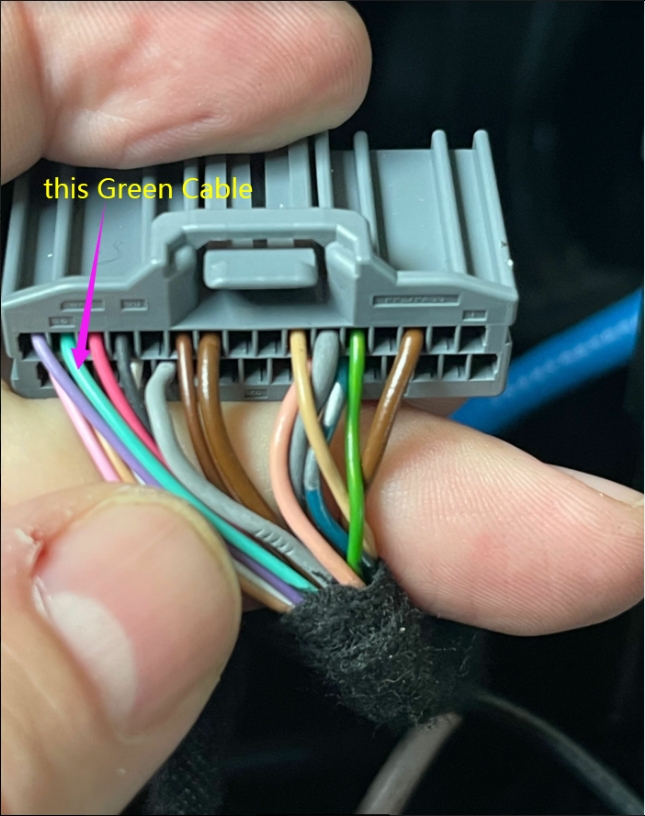

b. Then find your car backup camera cable from this plug:

c. Pls connect the Orange cable to the Green cable:

You can connect the step C like this way:

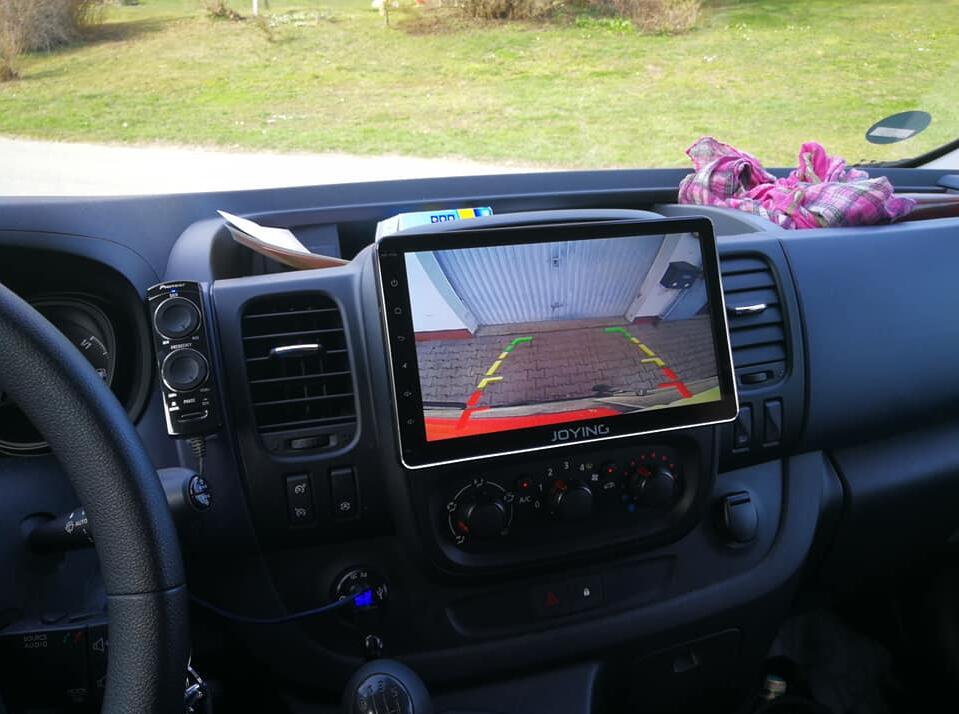

Then the Backup camera will work normally when you put the car in rear gear.

Any question pls feel free to contact via email support@joyingauto.com.

How to solve the 4G problem on Joying head unit?

21 July, 2021

|

Categories: Tips

　How to solve the 4G problem on Joying head unit?

Following ideas are for solving the 4G problem when there is no 4G signal or no internet data on the head unit. you can try below ways one by one.

The steps No.1-3 are the most important!!

1) You need to connect both 4G antennas to following "4G DIV" and "4G PRI" as below:

2) You need to buy following 4G SIM card style:

3) You need to reboot the head unit after you insert the 4G SIM card on the head unit.

4) You need to choose the proper date and time zone.

5) Please disable the pin code on the 4G SIM card.

If your phone is Iphone, you can check this video on how to disable the pin code:

https://www.youtube.com/watch?v=280izfsr_eQ

If your phone is android version, you can check this video on how to disable the pin code:

https://www.youtube.com/watch?v=bmJX65Mtwx0

6) Please disconnect following 4G antenna :

Please check whether these wires on the plug are broken or loose part from the plug.

If there is no problems on the wire, please connect it again on the board tightly.

7) Please check whether you have inserted the Micro 4G SIM card correctly:

In case that the SIM card is not fix stable on the slot, you also can try to put a small paper above of the SIM card. So that it can add the thickness.

8) For the APN setting processes:

You need to make clear on what is your APN setting for.

In order to get the APN information, you can insert the SIM card on the phone for checking.

And then create an APN on the Joying with the same setting which shown on the phone.

After setting the APN, please save it and then restart the head unit.

If your SIM card is from “AT&T”, you can try below APN setting:

If you are from AU, you can use the "telstra" or "Vodafone" card.

If you are in USA, you better to use the SIM card from “T-Mobile” /AT&T company. Please do not use the “version” and “Sprint”as far as possible.

Any more problem, please contact support@joyingauto.com or carjoying@gmail.com.

New UI Workable For Driving At Night

16 September, 2020

|

Categories: Tips

New UI Workable For Driving At Night

Hello! everyone

You can copy it on your USB driver and then install it on your head unit as wallpaper.

You will like it when you use the head unit at night.

Any more problem, please email us support@joyingauto.com or info@joyingauto.com

Joying wordwide website: https://www.joyingauto.com/
Joying europe website: https://www.joyingauto.eu/
Joying Youtube: https://www.youtube.com/c/BoykaJoying
Facebook: https://www.facebook.com/joyingandroidstereo/
Twitter: https://twitter.com/joyingauto

Joying Android 8.1 Intel Airmont SC9853i 2GB+32GB/4GB+32GB Car Stereo Latest Update

20 April, 2020

|

Categories: Updated Firmware

Joying Android 8.1 Intel Airmont SC9853i 2GB+32GB/4GB+32GB/4GB+64GB Car Stereo Latest Update

Note: this update is only workable for Android 8.1 intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB. Please contact us if you are not clear your head unit system.
otherwise the head unit will be damaged.

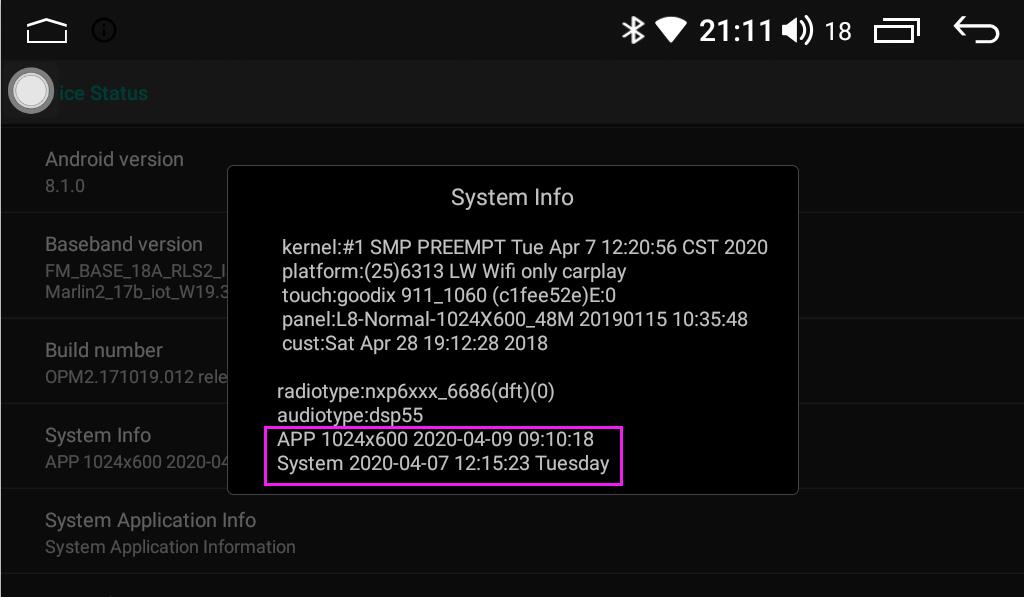

Following is the updated file (2020-04-07) for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

Improved feature:

Solve the Google voice calling problem.

Here is the firmware for resolution 1024*600 ,1280*720,800*480 models,

OS file please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3，J-UOS05N4GS,JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Some plug and play head unit model with 1024*600 ,1280*720,800*480 models, Honda, Jeep,vw,Nissan,Subaru,BMW,Benz,Peugeot and so on. if you are not sure, you can contact us firstly.

Following is the updated file (2019-11-28) for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

Improved feature:

1) Improve the head unit Canbus protocol

2) The Bluetooth version will be up to 5.1

Before the update, you need to make clearly your head unit is G23 or G32 version. please check following screenshot for reference:

1)If your head unit is G32 version and your MCU version is lower than 2019-9-7, you need to update the MCU file and OS file one by one.

If your head unit is G32 version and your MCU version is higher than 2019-9-7, you only need to update the OS file.

2)If your head unit is G23 version, no matter which MCU version date you have, you do not need to update the MCU file. only update the OS file.

Please noted: if you are still not clear, please contact us support@joyingauto.com or info@joyingauto.com we will help.

Here is the firmware for resolution 1024*600 ,1280*720 models,

OS file please click Here

MCU file please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3，J-UOS05N4GS

Here is the firmware for resolution 800*480 models

OS file: please click Here

MCU file: please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Here is the firmware for resolution 1280*480 with old UI models

OS file: please click Here

MCU file: please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

Here is the firmware for resolution 1280*480 with new UI models

OS file: please click Here

MCU file: please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2, JY-HOS01N4GS-2, JY-HOS02N4GS-2

Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768

OS file: please click Here

MCU file: please click Here

Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS

Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768

OS file: please click Here

MCU file: please lick Here

Applicable Car Models: JY-VO101N4GS-R

Following is the updated file (2019-9-17) with the new MCU version, solved Button light issue) for Android 8.1 Intel SC9853i car radio with 2GB+32GB/4GB+32GB/4GB+64GB

Below are the improvements after updating the system:

1. Add the Google assistant calling

2. Improve the issue of no audio reply from "ok Google"

3. If your phone is SC9853i with 2GB/32GB, you can use the "Mirror-link" function by wired/wireless wifi iphone or android phone.

4.After update, your pre-installed apps would not be deleted.

About the update, you need to know the followings:

1. If there is an error shown on connecting the z-link after your update, please reboot the head unit will be fine.

2. If your MCU is G32 as below, your head unit is old MCU version. you can update this updated file.

If your MCU is G23, your head unit is the new MCU version. you do not need to update this updated file.

If you are worried about the update, you can email us before your update.

Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G , JY-VO132N4GS
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3，J-UOS05N4GS

Here is the firmware for resolution 800*480 models, please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Here is the firmware for resolution 1280*480 with old UI models, please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

Here is the firmware for resolution 1280*480 with new UI models, please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2, JY-HOS01N4GS-2, JY-HOS02N4GS-2

Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768, please click Here

Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS

Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768, please click Here

Applicable Car Models: JY-VO101N4GS-R

Following is the updated file (2019-8-14 with the new MCU version, solved Button light issue) for Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

Note: If your Intel SC 9853i head unit is purchased after 10th Sept 2019, pls do not update with below firmware, contact with JOYING support by email first.

Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS,JY-UO135N2,JY-UO135N3,JY-UO138N3,JY-UO134N3,JY-UOS01N3,JY-UOS02N3

Here is the firmware for resolution 800*480 models, please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Here is the firmware for resolution 1280*480 with old UI models, please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

Here is the firmware for resolution 1280*480 with new UI models, please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2, JY-HOS01N4GS-2, JY-HOS02N4GS-2

Here is the firmware for 9.7 inch stereo with Manually Rotatable Screen resolution 1024*768, please click Here

Applicable Car Models: JY-VO101N4GS, JY-VOS01N4GS

Here is the firmware for 9.7 inch stereo with Automatic Rotatable Screen resolution 1024*768, please click Here

Applicable Car Models: JY-VO101N4GS-R

Following is the updated file (2019-6-21) for Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

Below problems have been solved:

1)When you are using the Bluetooth calling, you can also use the navigation.

2)Last and next song /pause the volume on Z-link function can be controlled by your steering wheel control.

3)TPMS app can be used normally.

Here is the firmware for resolution 1024*600 ,1280*720 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS

Here is the firmware for resolution 800*480 models, please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Here is the firmware for resolution 1280*480 with old UI models, please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

Here is the firmware for resolution 1280*480 with new UI models, please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2, JY-HOS01N4GS-2, JY-HOS02N4GS-2

Following is the updated file (2019-5-15) for Android 8.1 intel SC9853i car radio with 2GB+16GB/4GB+32GB/4GB+64GB

Here is the firmware for resolution 1024*600 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2,JY-UO135N4GS, JY-UO128N4GS, JY-UO138N4GS, JY-UO134N4GS, JY-UOS01N4GS, JY-UOS02N4GS, JY-UOS03N4GS, JY-VO131N4S, JY-TO138N4S, JY-VO130N4GS

Here is the firmware for resolution 800*480 models, please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G,JY-UOS04N4GS

Here is the firmware for resolution 1280*480 with old UI models, please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1,JY-HOS01N4GS-1, JY-HOS02N4GS-1

Here is the firmware for resolution 1280*480 with new UI models, please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2, JY-HOS01N4GS-2, JY-HOS02N4GS-2

Following is the updated file (2019-4-3) for Android 8.1 intel SC9853i car radio with 2GB+16GB/4GB+32GB

Here is the firmware for resolution 1024*600 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2,JY-JO002N4,JY-UO135N4,JY-UOS03N2

Here is the firmware for resolution 800*480 models, please click Here

Applicable Car Models: JY-UOS04N2,JY-UO126N4,JY-UOS04N4G

Following is the updated file (2019-3-29) for Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB

Here is the firmware for resolution 1024*600 models , please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2,JY-JO002N4

Here is the firmware for resolution 800*480 models , please click Here

Applicable Car Models: JY-UOS04N2

Here is the firmware for resolution 1280*480 with old UI models, please click Here

Applicable Car Models: JY-HOS01N4G-1, JY-HOS02N4G-1

Here is the firmware for resolution 1280*480 with new UI models, please click Here

Applicable Car Models: JY-HOS01N4G-2, JY-HOS02N4G-2

Following is the updated file (2019-3-5) for Android 8.1 Intel SC9853i car radio with 2GB+16GB/4GB+32GB

Here is the firmware for resolution 1024*600 models, please click Here

Applicable Car Models: JY-UO135N4G, JY-UO128N4G, JY-UO138N4G, JY-UO134N4G, JY-UOS01N4G, JY-UOS02N4G, JY-UOS03N4G, JY-VO131N4, JY-TO138N4, JY-VO130N4G ,
JY-UO135N2, JY-UOS03N2, JY-UOS04N2

Have any problems during update , please contact us info@joyingauto.com or support@joyingauto.com . we will try best to help you .
　
