JOYING Octa Core Processor Android 8.0 Car Radio Latest Update with 2GB /4GBRAM + 16GB ROM /32GB

　

Note: this update is only workable for Android car radio with octa core CPU with 2GB RAM+16GB ROM . Please contact us if you are not clear your head unit system .
 otherwise the head unit will be damaged .

Following is the updated files for Octa Core Processor Android 8.0 Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM /64GB
please noted : it can solve the android auto function supported by android 8.0 phone .
Android 8.0 update to Android 8.1 or Android 8.1 update to Android 8.1

Before update , you need to clarify your head unit with or without DSP (motherboard comes with nut chips )
following will be shown on pictures and help you how to distinguish. (if you still not clear , please contact us support@joyingauto.com or info@joyingauto.com )

Following updated files for resolution 1024*600 models ,
MCU file please click Here
OS file please click Here

Available unit :
JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,JY-UOS04N2PX5, JY-UOS01N4PX5, JY-UOS03N4PX5,JY-UOS02N4PX5
JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S
JY-KO002N4PX5S,JY-KO003N4PX5S,JY-HO122N4PX5S,JY-FO127N4PX5S,JY-FO128N4PX5S,JY-TO151N4PX5S,JY-TO152N4PX5S,JY-TO153N4PX5S,
JY-TO154N4PX5S,JY-TO155N4PX5S,JY-TO156N4PX5S,JY-TO157N4PX5S,JY-TO158N4PX5S,JY-TO159N4PX5S, JY-HO140N4PX5S,JY-HO141N4PX5S,JY-HO142N4PX5S
JY-HO143N4PX5S,JY-VO134N4PX5S,JY-HO001N4PX5S,JY-HO002N4PX5S,JY-HO003N4PX5S,JY-NO001N4PX5S,JY-PO148N4PX5S,JY-PO138N4PX5S

Following updated files for resolution 1024*600 models with DSP (motherboard comes with nut chips )
MCU file please click Here
OS file please click Here

Available unit :
JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,, JY-UOS03N4PX5,JY-UOS02N4PX5
JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S
JY-KO002N4PX5S,JY-KO003N4PX5S,JY-HO122N4PX5S,JY-FO127N4PX5S,JY-FO128N4PX5S,JY-TO151N4PX5S,JY-TO152N4PX5S,JY-TO153N4PX5S,
JY-TO154N4PX5S,JY-TO155N4PX5S,JY-TO156N4PX5S,JY-TO157N4PX5S,JY-TO158N4PX5S,JY-TO159N4PX5S, JY-HO140N4PX5S,JY-HO141N4PX5S,JY-HO142N4PX5S
JY-HO143N4PX5S,JY-VO134N4PX5S,JY-HO001N4PX5S,JY-HO002N4PX5S,JY-HO003N4PX5S,JY-NO001N4PX5S,JY-PO148N4PX5S,JY-PO138N4PX5S

Following updated files for resolution 800*480 models
MCU file please click Here
OS file please click Here

Available unit : JY-JO001N4PX5S

Following updated files for resolution 800*480 models with DSP (motherboard comes with nut chips )
MCU file please click Here
OS file please click Here

Available unit : JY-JO001N4PX5S

Following updated files for 9.7 inch horizontal models
MCU file please click Here
OS file please click Here

Available unit :  JY-VOS06N4PX5S,JY-UO136N4PX5S

Following updated files for 9.7 inch horizontal models with DSP (motherboard comes with nut chips )
MCU file please click Here
OS file please click Here

Available unit :  JY-VOS06N4PX5S,JY-UO136N4PX5S

Following updated files for 9.7 inch vertical models
MCU file please click Here
OS file please click Here

Available unit :  JY- VO101N4PX5S , JY-VOS01N4PX5S

Following updated files for 9.7 inch vertical models with DSP (motherboard comes with nut chips )
MCU file please click Here
OS file please click Here

Available unit :  JY- VO101N4PX5S , JY-VOS01N4PX5S

please noted following when you update:
1) please update the MCU files firstly and then update the OS files.
2) The updated files for the head unit with DSP is different with the unit has ASP.
if update the wrong files, the head unit will have no sound .
(you can judge by EQ interface . The previous normal EQ interface is ASP, currently internal DSP with nut chip interface is DSP )

3)For the universal head unit update you need to use the left USB on the back of the head unit (the head unit need to be opposite directly to you )
or you can update with sd card.
if your head unit is special unit, you need to connect the USB/CP port to update.

4) please kindly prepare 2 USB drivers or 2 sd card (class 10)
after finish updating the MCU files , the head unit will reboot automatically. after reboot and enter into the home interface please disconnect the
USB driver .MCU updated time will be a little short.
and then connect the USB which with OS files , the OS update will need a little more time.
during the update , please do not disconnect the USB driver. after finishing the update and show the "update successfully "tips then you disconnect
the USB driver.

　

Following is the updated files (2018-7-16 ) for Octa Core Processor Android 8.0 Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM /64GB

(Please noted : if you are not clear whether you can udpate following files , please contact us  europe@joyingauto.com .  otherwise the head unit will be bad if you udpate the wrong files )

Android 8.0.0 update to Android 8.1.0

Available unit :
Universal unit : JY-UO135N2PXC,JY-UO135N2PX5R,JY-UO135N2PX5,JY-UOS04N2PX5, JY-UOS01N4PX5, JY-UOS03N4PX5,JY-UOS02N4PX5
JY-UOS03N4PX5S, JY-UO135N4PX5,JY-UO138N4PX5,JY-UO134N4PX5,JY-UO135N4PX5S,JY-UO138N4PX5S

Toyota unit : JY-TO138N4PX5, JY-TO139N4PX5,JY-TO138N4PX5S

Here is the firmware updated link for 1024*600, please click Here
Here is the firmware updated link for 800*480, please click Here

Following is the updated files (2018-4-20 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM
Android 8.0 update to Android 8.0

Here is the firmware updated link for 1024*600, please click Here
Here is the firmware updated link for 800*480, please click Here

This update has the below features:
1. Add Z-Link app to run the Android Auto and iPhone Carplay
2. Optimize the System and apps

Kindly Warning:

1). Please download it from your windows computer and unzip it
2). Copy the unzipped files into an empty USB FAT32
3). Insert the USB into your car radio left side USB connector (the side without Wifi and GPS cable), then the unit will update automatically (if the head unit cannot detect the firmware to update, you can enter the car radio Settings - System and click the System Update button)
4). When updating, pls do not operate it and just wait it until the screen remind you to move the USB
5). After you remove the USB drive, the unit will restart automatically. After it reboot you need calibrate the touch screen.

After update succeed then you will find the Z-LINK app in the system menu, for the first time to run Z-Link app, you need connect the unit with internet.
Then when you enter the Z-Link app, it will remind you to fill in the Activation Code. Pls contact us support@joyingauto.com or info@joyingauto.com to get the Activation Code.
here is the video on how to update the system , please check :

If your have any abnormal situation during updating (like stuck in the logo, black screen, etc), please do not worry and feel free to contact us support@joyingauto.com or info@joyingauto.com.

Following is the updated files (2018-4-20 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM/4GB RAM+32GB ROM
Android 6.0 update to Android 8.0

Here is the firmware updated link for 1024*600, please click Here
Here is the firmware updated link for 800*480, please click Here

(Note: before upgrade, pls prepare a USB disk and a SD card which with the same firmware )

1). Pls download it from your windows computer and unzip it
2). Copy the unzipped files into High Quality empty USB disk FAT32 and empty 32GB C10 SD Card
3). Insert the USB disk into your car radio left side USB connector(the side without Wifi and GPS cable), then the unit will update automatically
4). When use the USB updating, the unit enter recovery page to upgrade, then it will show "Doing Actions Failed ! Pls Remove the USB Disk... "
5). Then Remove the USB disk(pls do not turn off the unit), and insert the SD card to unit GPS Map slot directly, and click the reset button, then the unit will upgrade automatically(Pls attention, The SD card should have the same firmware with the USB disk in)
6). When updating, pls do not operate it and just wait it until the screen remind you to move the USB
7). After you remove the USB drive, the unit will restart automatically. After it reboot you need calibrate the touch screen.

Details on how to update the system , please see below :


If you have any abnormal situation during updating (like stuck in the logo, black screen, etc), please do not worry and feel free to contact us support@joyingauto.com or info@joyingauto.com

Following is the updated files (2018-1-26 ) for Octa Core Processor Android Car Radio with 2GB RAM + 16GB ROM

Here is MCU update link, please click Here .
Here is system update link for HD 1024*600 resolution , please click Here .
Here is system update link for HD 800*480 resolution , please click Here .

Here is the video on how to update the system :

Before you update the head unit, please backup all important things:
1) Copy maps from car stereo internal storage to SD card.
 2) Go to settings-factory settings-enter password 126-canbus setting to check canbus protocol and record it.
3) Use a good quality SD card or USB to update it (format the SD card or USB as FAT32)

After you finish the update, you are required to do the below things:
1) After you update, you need to connect WiFi to activate carplay function. Only left side USB port has carplay function. if you want to use Android auto, please insatll android auto app from google play store, then connect android Phone via USB cable to left side USB port. Connect Bluetooth, and android auto function can work.
2) If your car stereo is VW special model, front and parking sensor can work well after this update.


Have any problems during update , please contact us support@joyingauto.com or info@joyingauto.com . we will try best to help you .
　

JOYING 2GB/4GB RAM 32GB ROM Octa Core CPU Android 8.0 Car Stereo Latest Update

Good day !

Have not updated the blog for a period .

Today , We would like to share some good installation review on Chevy  . hope it can help those who want to install the head unit .

Example 1 .

10.1 Inch Octa Core PX5 installed On 2016 Chevy Malibu LT w/o Bose System

please see our customer Farris review :

Here is the Youtube video that I made. I own a 2016 Chevy Malibu LT w/o Bose System. You can check out other videos of my car on my page. I had to do some small modifications behind the radio, such as trimming off plastic and mounting the radio to my aftermarket radio kit. The wires matched up GREAT with no problem. Everything was labeled right making installation easy. This being my first time installing a radio, I say this was a 2 out of 5 of difficulty for me.

Note: They will have to drill screw holes in the brackets so the radio will fit. It will only fit WITHOUT the sleeve that comes attached to Android (single din).
Chevrolet Malibu 2016-up Metra Kit 99-3019B

Here is the harness adapter I used for the installation on my 2016 Chevy Malibu LT.
Axxess GMOS-LAN-10 (without Bose System)

Example 2.

8 Inch Double Din PX5 installed on 2011 Chevrolet Aveo

Example 3.

 7 Inch Double Din PX5  installed on Chevy Suburban 2004

Example 4

7 Inch Single Din Octa Core Installed on Chevrolet K1500 MY1992

Example 5.

7 Inch Double Din PX5 installed on 2005 Chevy Avalanche

Example 6

7 Inch Double Din Car Radio installed on 2010 Chevy Silverado

Example 7

7 Inch Octa Core PX5 installed on chevrolet corvette 2005

　If you also have something interesting installation experience or you want to install our head unit on your Chevy car , you can contact us support@joyingauto.com  or info@joyingauto.com

Joying wordwide website: https://www.joyingauto.com/
Joying europe website: https://www.joyingauto.eu/
Joying Youtube: https://www.youtube.com/c/BoykaJoying
Facebook: https://www.facebook.com/joyingandroidstereo/
Twitter: https://twitter.com/joyingauto

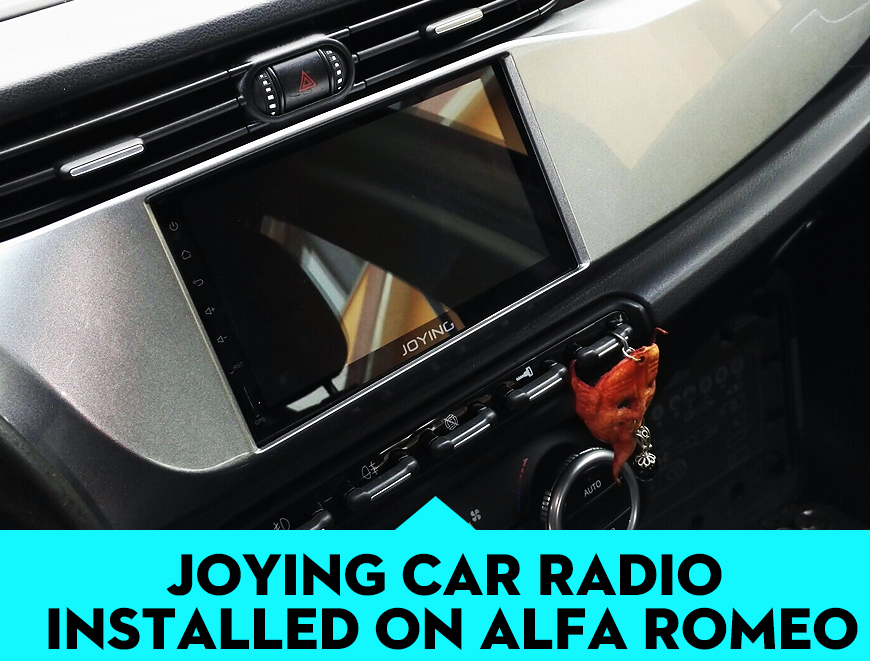

Joying Android Head Unit Installed On The Alfa Romeo

Good afternoon ! everyone

Today we would like to share some good experience on installing head unit on Alfa Romeo .

Example 1.

Following  is 7 Inch Double Din installed on  2013 alfa romeo Giulietta .

Example 2 .

Joying Car Radio installed on Alfa Romeo 159 (2006) 1.9 JTDm

As above dashboard , you can check following video for reference if you want to install 7 Inch Double Din.

If you want to install 8 Inch Octa Core Car Radio ,you can check below dash kit for installation .

The dash kit need to be 178*100mm or 178*102 mm

Example 3 .

8 Inch Double Din Car Radio run on alfa romeo 146 .

7 Inch Double Din installed on Alfa Romeo GT from Year 2005

Example 4 .

If your car as following dashboard , you can install 7 Inch Single Din

you need to check below dash kit :

If you are also interested in installing our head unit on your Alfa Romeo , please contact us support@joyingauto.com or info@joyingauto.com

Joying wordwide website: https://www.joyingauto.com/
Joying europe website: https://www.joyingauto.eu/
Joying Youtube: https://www.youtube.com/c/BoykaJoying
Facebook: https://www.facebook.com/joyingandroidstereo/
Twitter: https://twitter.com/joyingauto

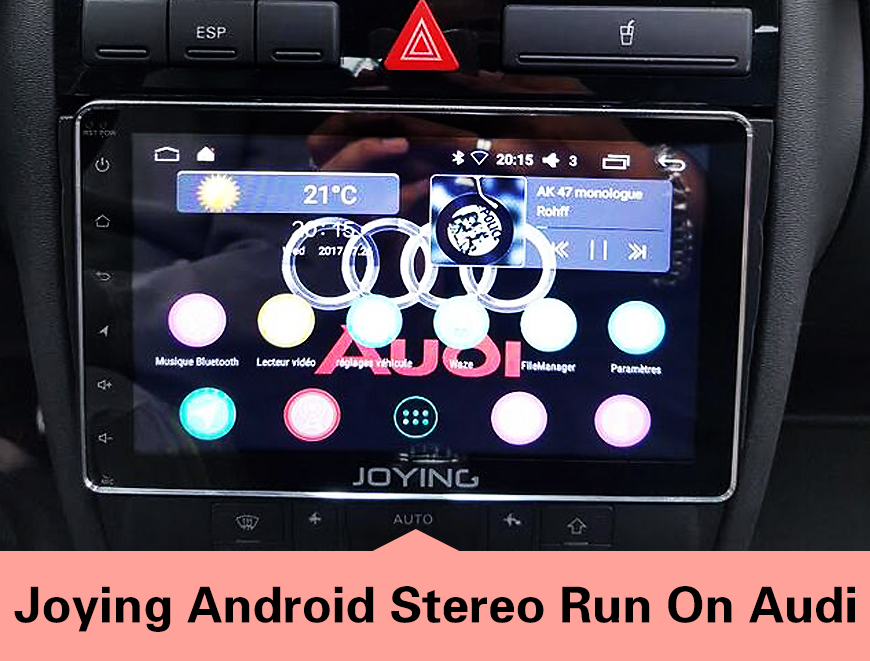

Joying Android Stereo Run on Audi

Good day !

Today is happy weekend !!

We would like to share some good installation review on Audi . hope it can help those who want to install the head unit .

Example 1 .

8 Inch Single Din Run On Audi TT mk1

Example 2.

8 Inch Double Din installed on AUDI S3 2002

Example 3.

Special Audi Head Unit (AM001N2 ) or  7 Inch Double Din PX5  installed on Audi A3

Example 3.

Special Audi A4 Car Radio  or 10.1 Inch Single Din Octa Core installed on Audi a4 cabrio 2008
